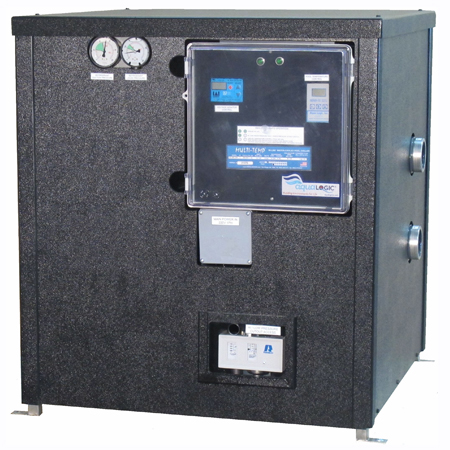

Multi Temp Water-Cooled Chiller

Aqua Logic’s Multi Temp Water-Cooled Chiller offer the same reliability as our smaller water cooled chillers on a commercial scale.

Very popular in the public aquarium and aquaculture industry our Multi Temp water-cooled chillers feature water cooled condensers, making them ideal for installations with an existing freshwater supply. They use water to cool the condenser instead of air provided by a fan and motor. Their low heat emission, compact size, and quiet operation allow them to be used in tight spaces with minimal ventilation.

Multi Temp Water-Cooled Chiller

Categories: ,

A properly sized and installed heat pump will provide stable, thermostatically controlled water temperature in the range of 40-85ºF.

Sources of the cooling water include the facility’s chilled water loop, municipal water supply, cooling tower, or well and spring water.

System Requirements:

  • An external water supply loop is required for cooling the condenser.
  • Multi Temp Chillers require a pump to move water through the heat exchanger at all times.
  • Please adhere to minimum and maximum flow rates provided by Aqua Logic.
  • Always use an external pump as submersible pumps add heat to the water.
    • Features
    • Sizing
    • Specifications
    • Product Literature
    • Product Inquiry
    • 2 Hp- 25 Hp
    • Insulated Titanium Heat Exchanger
    • In-Line Tube In Shell Evaporator
    • Remote Helix Titanium Coil
    • Water Control Valve for condenser
    • Remote Electronic Temperature Controller
    • Includes Stainless Steel Frame
    • Fresh or Saltwater Use
    • Compact Design
    • Quiet Operation
    • Black ABS Cover
    • Options for size and configuration
    • Ozone Friendly Refrigerant (134A)

    A number of factors influence the correct size of chiller required for your application. While standard Btu calculations can be applied, and our Multi Temp Chiller Specifications can offer some guidelines, the parameters of your application will be the deciding factor in correct size selection. Contact us today for help with sizing the perfect unit for your needs.

    For spatial planning you can refer to the dimensions of each unit on our specifications table and use the following diagram as a guide. Custom sizes available.

    Model Number HP BTU/KW Removal Capacity Volts/Phrase Amps Flow (gpm) Min/Max Length Width Height Shipping Weight
    MT-1-WC 2 24,000 230-240/1Ø 11.6/60 20/40 55" 18" 49"
    MT-3-WC 3 36,000 230-240/1Ø 13.5/73 20/40 55" 18" 49"
    MT-4-WC 3 36,000 230-240/3Ø 12.6/74 20/40 55" 18" 49"
    MT-5-WC 4 48,000 230-240/1Ø 18.6/93 30/60 55" 18" 49"
    MT-6-WC 4 48,000 230-240/3Ø 15.6/101 30/60 55" 18" 49"
    MT-7-WC 5 60,000 230-240/1Ø 225/148 30/60 55" 18" 49"
    MT-8/WC 5 60,000 230-240/3Ø 21.6/139 30/60 55" 18" 49"
    MT-9/WC 7.5 96,000 230-240/3Ø 28/183 60/120 47" 24" 50"
    MT-10-WC 10 120,000 230-240/3Ø 40/278 60/120 58" 30" 68"
