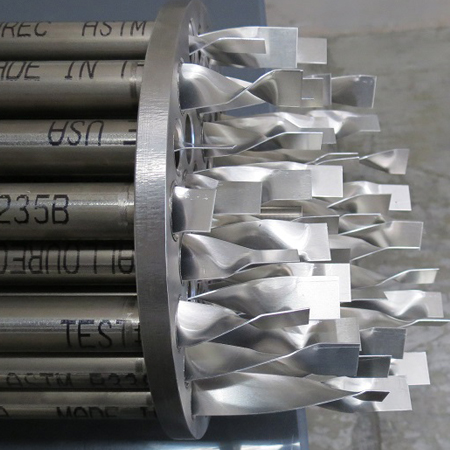

Aqua Logic titanium tube sheet heat exchangers were developed to maximize surface area in a very compact package. Designed for both refrigerant to water and water to water applications. The internal tube sheet coil is constructed entirely of titanium tubing and enclosed in insulated Schedule 40 PVC shell. All internal materials are non-corrosive in seawater and will not leach toxic elements into the system water.
Available in sizes from 10HP (120,000 btus) and larger.
Made to order. Not available for sale in online store. Please contact us for assistance with sizing and purchase.
- Features
- Sizing
- Specifications
- Product Literature
- Product Inquiry
- 10HP to 25HP

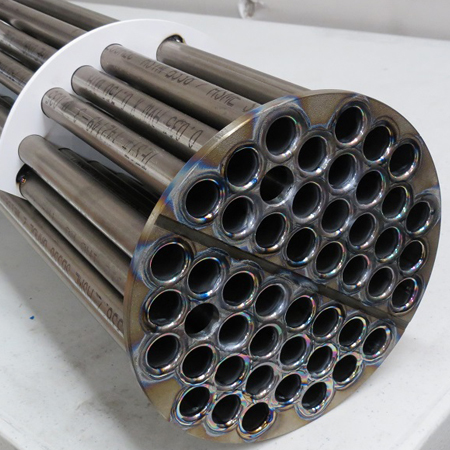

- Titanium tube sheet
- Insulated PVC shell
- Fresh or Saltwater Use
- Use as Heat Exchanger or Condenser
- Compact Design
- Compression Fittings for Titanium to Copper Connectors
- Compatible with Refrigerant, Water or Glycol
- One end is flanged for cleaning and coil inspection.
- Also available with Schedule 80 PVC & Schedule 80 CPVC Shells.
A number of factors influence the correct size of heat exchanger required for your application. While standard Btu calculations can be applied and our specifications can offer some guidelines, the parameters of your application will be the deciding factor in correct size selection.
Contact us today for help with sizing the perfect unit for your needs.
Our Titanium Tube Sheet Heat Exchanger can be used in a variety of applications as listed below; When ordering this style please specify which series you need so that the unit will operate properly in the intended application. If you are unsure of which series to order, please contact us and we’ll be happy to help.
S Series Heat Exchanger
(Chiller) The heat exchanger absorbs heat from the tank system water into the refrigerant system.
SHP Series Heat Exchanger
(Heat Pump) The heat exchanger rejects heat into the tank system water from the refrigerant system.
SC Series Heat Exchanger
(Condenser) The heat exchanger rejects heat from the refrigerant system into a water source.
SW Series Heat Exchanger
(Water to Water) The heat exchanger directly absorbs or rejects heat from the tank system water into another water source.
*Complete Heat Exchanger Packs for refrigerant and water to water applications are also available from Aqua Logic.
S Series Chiller Barrel
| Model Number | Horse Power | BTU Removal Capacity | Flow (gpm) Min/Max | In/Out | Length | Width | Height | Estimated Weight Lbs |
|---|---|---|---|---|---|---|---|---|
| HX-120-S | 10 | 120,000 | 120/180 | 3" | 15-1/2" | 17-1/2" | 66" | 110 |
| HX-140-S | 12.5 | 140,000 | 120/180 | 3" | 15-1/2" | 17-1/2" | 68" | 120 |
| HX-180-S | 15 | 175,000 | 120/180 | 3" | 15-1/2" | 17-1/2" | 80" | 135 |
| HX-240-S | 20 | 220,000 | 120/180 | 3" | 15-1/2" | 17-1/2" | 92" | 150 |
| HX-300-S | 25 | 300,000 | 120/180 | 3" | 31" | 18-1/2" | 69-1/8" | 240 |
SHP Series Chiller Barrel for Heat Pumps
| Model Number | Horse Power | BTU Removal Capacity | Flow (gpm) Min/Max | In/Out | Length | Width | Height | Estimated Weight Lbs |
|---|---|---|---|---|---|---|---|---|
| HX-120-SHP | 10 | 120,000 | 120/180 | 3" | 17-1/2" | 20" | 66" | 110 |
| HX-140-SHP | 12.5 | 140,000 | 120/180 | 3" | 17-1/2" | 20" | 68" | 120 |
| HX-180-SHP | 15 | 175,000 | 120/180 | 3" | 17-1/2" | 20" | 80" | 135 |
| HX-240-SHP | 20 | 220,000 | 120/180 | 3" | 17-1/2" | 20" | 92" | 150 |
| HX-300-SHP | 25 | 300,000 | 120/180 | 3" | 34-1/2" | 20" | 69-1/8" | 240 |
SC Series Condenser
| Model Number | Nominal BTU Removal Capacity |
|---|---|
| HX-120-SC | 120,000 |
| HX-140-SC | 140,000 |
| HX-180-SC | 175,000 |
| HX-240-SC | 220,000 |
| HX-300-SC | 300,000 |
SW Series Water to Water
| Model Number | Nominal BTU Removal Capacity | Flow (gpm) Min/Max | In/Out | Length | Width | Height | Estimated Weight Lbs |
|---|---|---|---|---|---|---|---|
| HX-120-SW | 120,000 | 120/180 | 3" | 17-1/2" | 20" | 66" | 110 |
| HX-140-SW | 140,000 | 120/180 | 3" | 17-1/2" | 20" | 68" | 120 |
| HX-180-SW | 175,000 | 120/180 | 3" | 17-1/2" | 20" | 80" | 135 |
| HX-240-SW | 220,000 | 120/180 | 3" | 17-1/2" | 20" | 92" | 150 |
| HX-300-SW | 300,000 | 120/180 | 3" | 34-1/2" | 20" | 69-1/8" | 240 |
Interested in this product line? Just fill out the form below and we'll get in touch shortly with answers to your questions and solutions for your problems.
